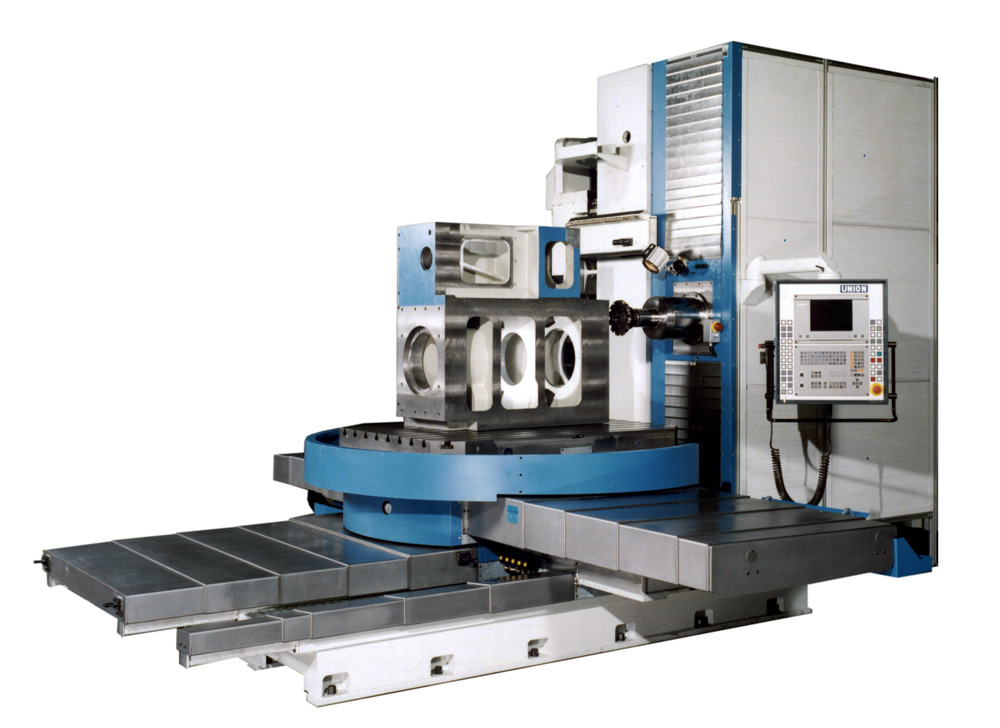

Compact boring machines for effective and cost-efficient multiple side machining of medium-weight, complex work pieces. With effective working envelopes of 2,500 x 2,500 x 1,500 mm, the machines are individually tailored to meet the costumer's needs by selecting from extensive available options and equipment variants.
Technical specification:
| Boring spindle diameters available | 110, 130 and 150 mm |
| X (table diagonally) up to | 2 500 mm |
| Y (vertical) up to | 2 500 mm |
| Z (table lengthwise) up to | 1 500 mm |
| W (boring spindle) up to | 750 mm |
